Pruftechnik Rotalign Smart EX Shaft Alignment System

Description

Pruftechnik Rotalign Smart EX Shaft Alignment System

Pruftechnik Rotalign Smart EX Shaft Alignment System is the ultimate laser shaft alignment system designed for use in potentially explosive atmospheres in accordance with ATEX and IECEx regulations. It comes in a robust light-aluminum case which is also certified.

The system is fully packed with powerful capabilities. With Concurrent Live Move, only one measurement is required to perform the required machine adjustments: no matter the position of the sensor on the shaft, Live Move enables to concurrently monitor the vertical and horizontal machine corrections live on the screen. This is extremely useful in case of restricted access to predefined shaft positions.

Options Optalign Smart EX

RF module for wireless data transmission
3-machine train alignment
Enter alignment targets and thermal growth values including input of dial indicator readings
Fixed feet selection – resolves base-bound and bolt-bound problems
Multipoint mode – measurement at any 3 or more positions over 60° rotation or wider
Alignment of cardan and spacer shafts
Heavy-duty rechargeable Li-Ion battery
PC software ALIGNMENT CENTER is used for preparing, analyzing, archiving measurement files and printing professional reports

Features

Coupled and uncoupled shafts
Horizontal, vertical and flanged mounted machines
Cardan and spacer shafts
Live monitoring of horizontal and vertical equipment
UniBeam – single laser beam technology
Continuous Sweep, Static, Multipoint and Pass mode
Machine train alignment for up to 6 machines
Soft foot measurement with sensor at any angular position
TolChek – automatic evaluation of alignment condition and user defined tolerances
Fixed feet selection resolves base-bound and bolt-bound problem
Protected against dust, water, and grease in compliance with IP 65 and IP 67
USB interface for PC and printer
Rigid pre-assembled universal brackets and additional support posts included

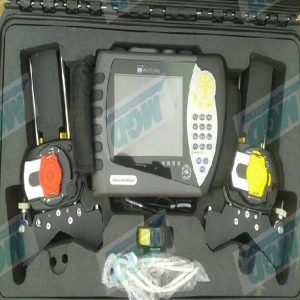

All Rotalign Smart EX systems are delivered in a robust and valuable light-aluminum case. The aluminum case as well its foams are suitable for hazardous areas.
