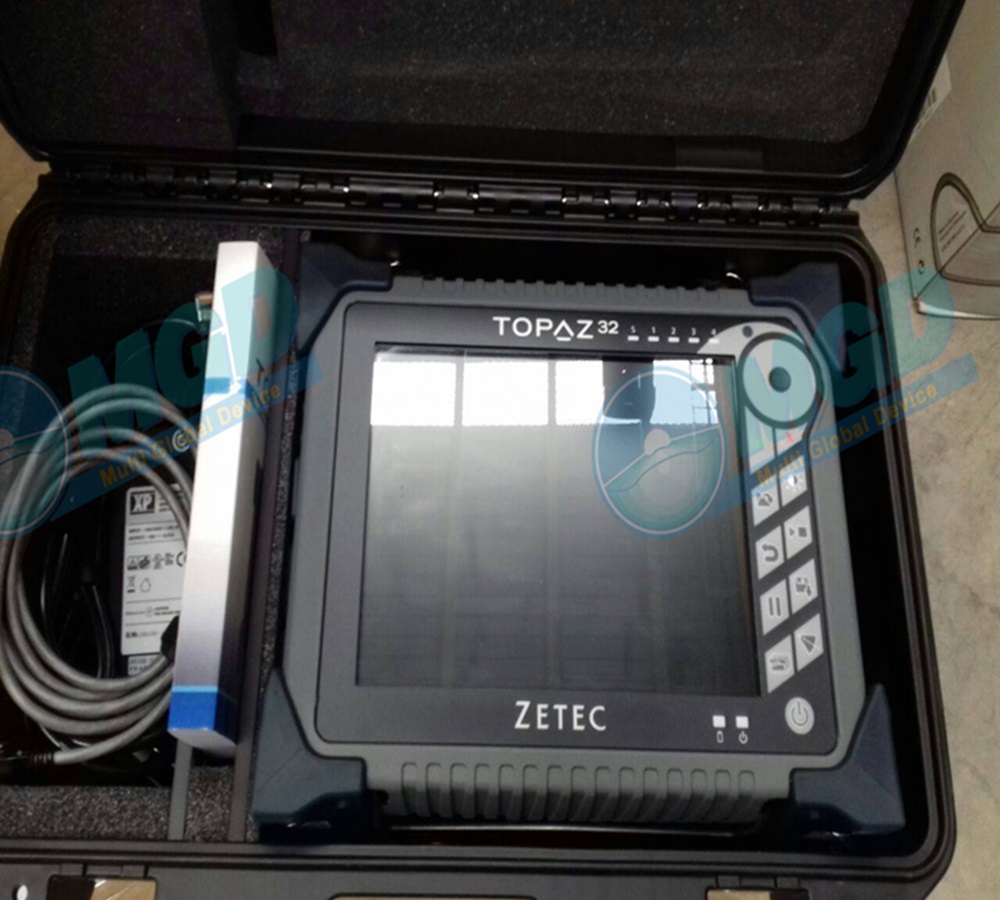

Zetec Topaz32 32 Channel Phased Array Instrument
Original price was: $12,644.00.$6,322.00Current price is: $6,322.00.
The Zetec Topaz 32 is a fully integrated Ultrasonic Testing solution for the Oil & Gas, Power Generation, Manufacturing, and Transportation Industries. Configure inspections on complex specimens like axial or circumferential welds using any Zetec scanner or probe. Utilizing speed and onboard processing, the Topaz 32 makes way for bigger onboard data files and quicker analysis. The new 64-bit onboard computer offers extra computing power and reduces processing by half, improving the operating of the unit. The multi-touch hi-resolution display is 64% better than the standard displays and can be used indoors and outdoors with clear visibility. The touchscreen is also usable while wearing gloves.
Description
Zetec Topaz32 32 Channel Phased Array Instrument
Zetec Topaz32 32 Channel Phased Array Instrument is a 32-channel, high-performance phased array UT device — a complete solution for your inspections. Optimally designed for Oil & Gas, Power Generation, Manufacturing and Transportation applications, TOPAZ32 boosts productivity, reduces job time duration and can lower total cost of ownership.
Inspection advantages
One of the many key advantages of the new TOPAZ32 is that 2D matrix array probe support is now included without the need of any external software. This fully-integrated and simplified approach can reduce the amount of equipment needed to perform an inspection.
With its rugged construction and airtight magnesium and rubber housing, TOPAZ32 is durable enough to handle inspections in even the harshest conditions. It’s lightweight, making it portable enough to go wherever you need to carry it.
Powered by UltraVision software
With UltraVision touch software embedded in TOPAZ32, everything you need for advanced setups and analysis is in one instrument. Visit the UltraVision Touch page to learn more about the software features.
SPECIFICATIONS
| Dimensions (H x W x D) | 5.2 × 10.3 × 12.8 in (13.2 x 26 x 32.6 cm) |
| Weight | 13.9 lb. (6.3kg) |
| Multi-touch Display | 10.4 in. (1024 x 768 pixels) |
| Air Intake | No |
| Battery Operation | Yes (Hot Swap) |
| Phased Array Connector | ZPAC Connector (custom ZIF with latch) |
| Phased Array Channels | 32/128 P or 32/128 PR |
| UT Channels | 2 P/E or 2 P&C |
| Digitizing Frequency | Up to 100 MHz |
| Amplitude Resolution | 16 bits |
| Measurement Gates | 4 gates + 1 synchronization gate |
| Data Interfaces | Ethernet 1000 Base-T; 1 x USB 3.0; 2 x USB 2.0 |
| Maximum PRF | 12 kHz |
| Maximum Pulser Voltage (Open Circuit) | 105V PA UT / 215V UT |
| Maximum Applied Voltage (50 ohms) | 75V PA UT / 200V UT |
| Bandwidth (-3 dB) | From 0.5 to 18 MH z |
| Real-time Data Compression | Yes |
| Rectification | Digital |
| Filtering | Analog/digital (FIR) |
| Smoothing (Video Filter) | Digital |
| Self-Check | Yes |
| Automated Probe Detection | Yes |
| Dynamic Depth Focusing (DDF) | Yes |
| # Focal Laws (DDF) | 1024 |
| Maximum Number of Samples | 8,192 – 16,384 (remote – UltraVision® 3) |
| Maximum Data File Size | 2 GB onboard – 20 GB (remote using UltraVision® 3) |
| Encoder Interfaces | 2 Quadrature-type |
| PC Software Control | UltraVision Touch embedded |
| Serves as Protection Key | License for UltraVision Touch |
| Data Acquisition & Analysis | UltraVision Touch; UltraVision 3 |
| Embedded Hard Drive | 120 GB SSD |
| Video Output | DVI (Digital and Analog) |
| Instrument Calibration | Compliant with ISO 18563-1 |
| Ingress Protection Rating | Designed for IP66 |
