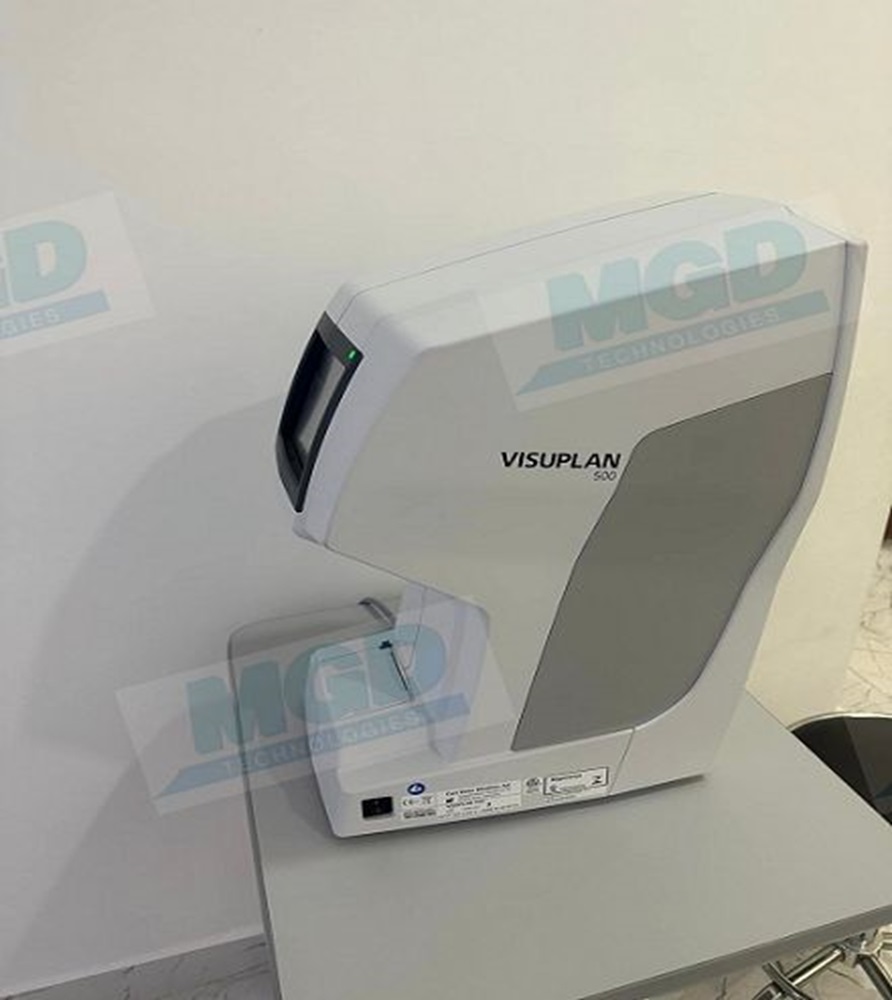

Zeiss Visuplan 500 Non Contact Tonometer

Description

Zeiss Visuplan 500 Non Contact Tonometer

Zeiss Visuplan 500 Non Contact Tonometer makes this examination very easy and, complementing the Goldmann tonometry, does not require contact or anesthesia. The measurement is made with a soft puff of air and can be administered by your practice team.

Intuitive Operation

The measurement process runs automatically. You start directly via the touchscreen and choose from single or multiple measurements. Alternatively, you can print out the results with the integrated thermal printer, or export via the serial interface.

Stable headrest and reliable LED fixation

The headrest allowing for simple positioning of the patient. The integrated LEDs help patients intuitively fixate, enabling a fast and reliable measurement. You move the headrest to measure the second eye.

Automatic positioning and measurement

Thanks to the auto-tracking of the probe, it is very easy to find the right position and initiate the measurement.

Key benefits at a glance

Your staff can take the measurement.

VISUPLAN 500 makes this IOP examination very easy precise.

Air-puff principle
Fully automated with touch screen operation
Easy to use and delegate to practice staff
Fast measurement for easy and early identication of high-risk IOP patients even during pretest exams
No need for anesthetics or ?uorescein
Integration with EMR

Discover ZEISS Essential Line
Complete basic diagnostic workplace

A well-functioning basic diagnostic pathway is indispensable for efficient practice management in virtually every eye care facility – for new patient exams, routine check-ups as well as to support treatment decisions. ZEISS Essential Line portfolio of basic diagnostic instruments brings simplicity to these examination workflows – and quality right from the start.

Connectivity with ZEISS VISUCONNECT500

Connect your device to a local network, use a patient work list on a tablet or PC and transfer measurements to your EMR/PMS or FORUM from ZEISS with the optional VISUCONNECT 500 from ZEISS.

VISUPLAN 500
Dimensions (W x D x H): 270 x 359 x 501 mm
Weight: 10.9 kg
Power frequency: 50/60 Hz
Power consumption: 60-85 VA
Voltage: 100-240 V
Protection class: 1
Instrument type: B (DIN EN 60601-1)
Measuring range: 7 to 60 mmHg
Monitor: 5.7″ LCD TFT
Printer: Thermal Printer
Printer paper: Thermal paper (width: 57 mm, roll diameter: 50 mm)
