Name: Olympus Nortec 600D Eddy Current Flaw Detector
SKU: 1984
Price: 2175.00 USD
Availability: InStock

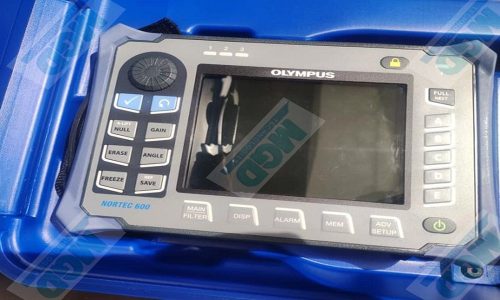

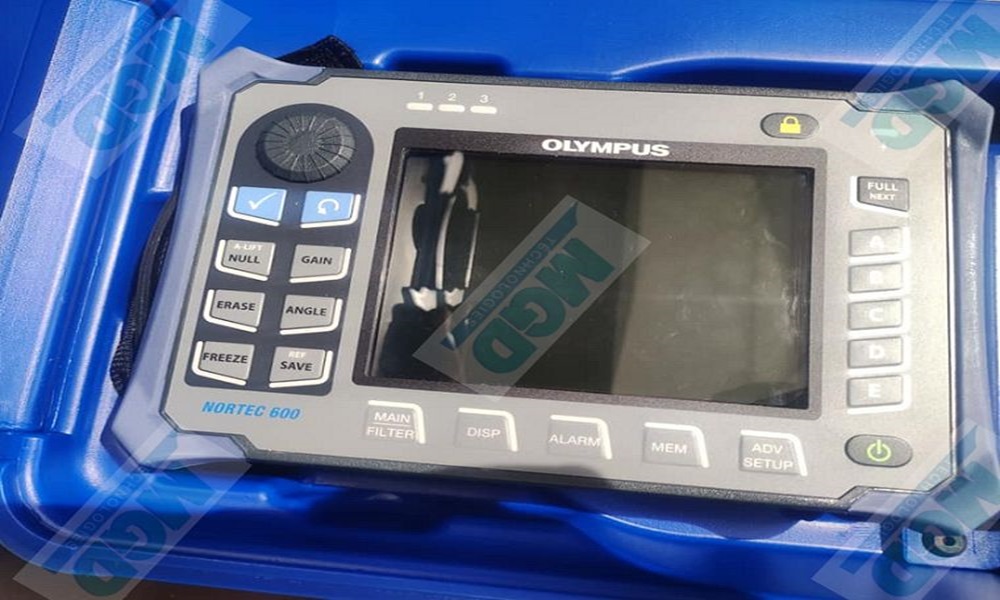

Olympus Nortec 600D Eddy Current Flaw Detector

$2,175.00

The NORTEC 600D has one of the most brilliant displays available on the portable eddy current flaw detector market. The unique brightness, resolution, and definition of its 5.7 inch VGA display makes it possible to interpret eddy current signals at a distance. The user-selectable color schemes ensure that the display is equally clear and easy-to-read whether you are using the NORTEC 600D indoors or outside.

Category: Flaw Detector Tag: Olympus

Description
Reviews (0)

Description

Olympus Nortec 600D Eddy Current Flaw Detector

Olympus Nortec 600D Eddy Current Flaw Detector advancements in high-performance digital circuitry and eddy current flaw detection into one compact and durable portable unit—the new NORTEC 600D. With its crisp and vivid 5.7 inch VGA display and true full-screen mode, the NORTEC 600 is capable of producing highly visible and contrasting eddy current signals in any lighting condition.

Reliable and Robust

Based on an already field-proven instrument case, the NORTEC 600D is built for endurance in harsh field conditions. Its casing’s durability and resistance to extreme weather makes the NORTEC 600 an instrument you can trust for any eddy current inspection job.

Key Features

Designed to meet the requirements of IP66.
EN-15548 compliant.
Long battery life (up to 10 hours).
Bright, 5.7 inch (14,5 cm) VGA display.
Full-screen option in any display mode.
Improved filters for rotary scanner mode.
Intuitive interface with Application Selection presets.
All-settings configuration page.
10 Hz to 12 MHz frequency capacity.
Automatic internal balancing (BNC connector).
Up to two real-time readings.
True automatic mixing.
Storage capacity of up to 500 files (program and data).
On-board file preview.

Portable and Lightweight

The NORTEC 600D weighs only 1.6 kg and is delivered with a factory-installed hand strap that provides direct thumb access to the key controls, offering genuine handheld versatility to operators.

Versatility and Compatibility

Four Models for All Your Needs

The NORTEC 600D is available in four versatile instrument models to meet the widest range of inspection needs. From the basic model upward, each unit unlocks more features. For maximum convenience, additional features can also be unlocked remotely.

Two Probe Connectors

All models of the NORTEC 600D come with the standard LEMO 16-way universal connector, as well as a BNC connector for absolute probes. Simply select the connector in the instrument interface. When reading from the BNC connector, the instrument features automatic internal balancing for hassle-free operation.

The 16-way LEMO connector also supports the PowerLink NORTEC technology, which features automatic probe recognition and instrument presets for quicker setups.
