$14,320.00Original price was: $14,320.00.$7,160.00Current price is: $7,160.00.
iTero Element Plus Series imaging systems you have cutting-edge digital scanning performance that delivers a seamless experience. iTero Element Plus Series imaging systems are built upon the success of the iTero Element portfolio, which features innovative technology like Invisalign® Outcome Simulator Pro and iTero™ NIRI Technology (Near Infra-Red Imaging).

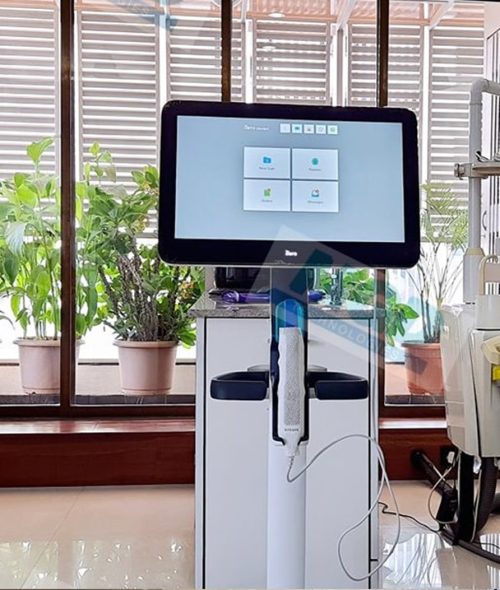

iTero Element 2 Plus Cart, The in-face visualisation view enhances your patient experience and the 3D dentition view supports in-depth treatment discussion.
Technical Specifications
Monitor
21.5” Full HD (1920×1080) touch screen
Wand
The wand emits red laser light (680nm Class 1) as well as white LED emissions.
Wand operating power: 15VDC
Wireless LAN
A LAN card provides local network communications with wireless connectivity
2.4GHz, 5GHZ
802.11ac
Security
See the product security whitepaper in appendix C.
Operating Power
100-240 VAC- 50/60 Hz-300VA (max)
Operating Temperature
18°C to 26°C / 64.4°F to 78.8°F
Storage/Transportation
Temperature
-5°C to 50°C / 23°F to 122°F
Operating Pressure and Altitude
Pressure: 520 mmHg to 771 mmHg (-69 kPa to -103 kPa)
Altitude: -400 feet to 10,000
Storage/Transportation Altitude
Pressure: 430 mmHg to 760 mmHg (~57 kPa to ~101 kPa)
Altitude: 0 feet to 15,000 feet
Relative Humidity
Operating: 40% to 70%
Storage: 30% to 90%
Dimensions
iTero Full HD touch-screen computing unit:
Height: 356 mm (~14 in)
Width:544 mm (~21.5 in)
Depth: 60.5 mm (~2.3 in)
Wheel stand:
Height: 1279 mm (~50.3 in)
Width: 544 mm (~21.4 in)
Depth: 562 mm (~22.1 in)
Wand:
Length: 338.5 mm (~13 in)
Width: 53.5 mm (~2 in)
Depth: 69.8 mm (~3 in)
Cable length
Power cable: 3000 mm
Wand cable: 1.8 m typical
Net Weight
Computing unit: 10.5 kg (~23.1 lbs.)
Wand: 0.47 kg (~1.0 lbs.) without the cable
Wheel stand: ~12.5 kg (~27.5 lbs.)
CPU Specifications
Intel® Core™ i7
GPU Specifications
Nvidia
Battery
Integrated battery for uninterrupted scanning and ease in office portability without plugging in or rebooting, providing:
At least 30 minutes of active continuous scanning
<2.5 hours for full recharge
Scanner and wand crosscontamination protection
Single-use, disposable sleeves
Accessible ports
USB types A and C
Scanning technology
Parallel Confocal technology
Scanning properties
No hovering required – scanning can be done at a distance of 0 mm
No field calibration needed
Flexible scanning protocol (start anywhere, auto stitching)
Automated heating of the tip to avoid fogging of the lens
Scan time
Full mouth can be completed in as little as 60 seconds.
AI Scan Assistant
Auto-trimming tool: Provides a 3D model cleaned from excess scan material
Auto-margin marking tool: Provides automatic marking of the margin line on crown cases
Cloud storage
Data can be stored and accessed on the web using cloud storage and the MyiTero web portal
