Creaform GoSCAN 50 3D Scanner

Description

Creaform GoSCAN 50 3D Scanner

New 3D scanner Creaform GoSCAN 50
Easy 3D scanning: see your object projected in 3D directly on the HD display

Features:

Scan Area: 380h380 mm
Resolution: 0.5 mm
Accuracy: 100 microns
The depth of field of field: 250 mm
The size of the scanned object: 0.3-3 m
Light Source: White LED

3D Scanner Go! SCAN 50 – the top model in the line GO! SCAN company Creaform. This is a mobile and easy-to-use device designed primarily for 3D-scanning medium and large sites (ranging from 0.3 to 3 meters). GO! SCAN 50 is characterized by high speed, the ability to transmit the color and geometry of the object, a great autonomy and ease of use. The versatility of this 3D-scanner is used to solve problems in the field of reverse engineering, manufacturing, medicine, archeology, design, and other industries.

Technology of 3D-scanning

Laser: Laser triangulation phase
Light source: Light-emitting diode

Properties of 3D-scanning

Transfer color: Yes
Capture textures: Yes
3D-Resolution: 0.5 mm
Accuracy: 0.1 mm
Scan speed: 550 000 measurements per second
Scan Area: 380h380 mm
Operating distance from the subject: 400 mm

Software

Software: VXelements
Output format: .dae, .fbx, .ma, .obj, .ply, .stl, .txt, .wrl, .x3d, .x3dz, .zpr
Interface: USB 2.0
Supported operating systems: Windows Vista / XP / 7/8 / 8.1

Dimensions of the device

Dimensions: 150x172x251 mm
Weight: 0.95 kg
Scanning

To scan, you have to connect the GoScan! 50 to AC power and a laptop running Creaform’s VXelements software suite. Next, you calibrate the scanner using a provided calibration plate (normally takes < 1 minute) and you are ready to go.

The scanning works using two methodologies: natural feature dependent or target dependent. While the natural features option is very handy, it does have some limitations. The object you’re scanning will need to have unique geometry and/or color variation within the 15 in X 15 in (38cm X 38cm) field of view in order for this methodology to be successful. Additionally, you may have problems if you have the same feature repeated in multiple areas.

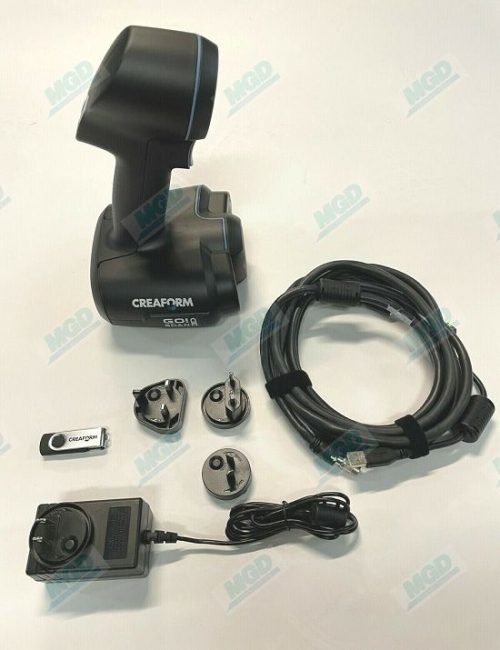

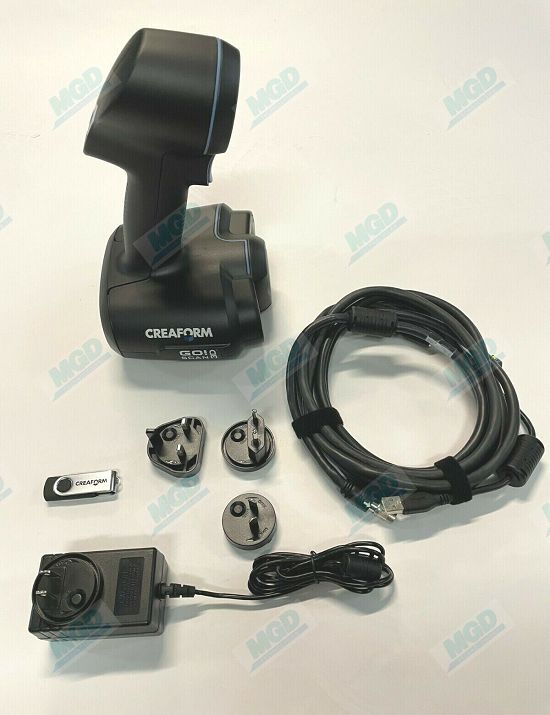

Includes:

– 3D-Scanner GO! SCAN 50 CREAFORM High Speed
– Software licenses VXelements
– 2X Battery
– 1000 markers
– USB-cable 4m
– 18V power supply
– Certified calibration
– 1 year warranty
– 5 years for software updates and technical support

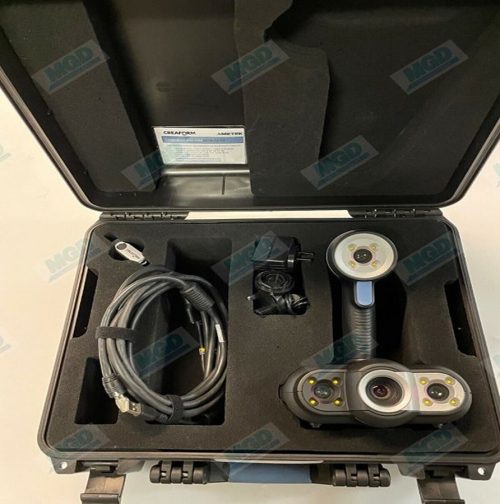

– Protective carrying case
