Artec Eva Laser 3D Scanner

Description

Artec Eva Laser 3D Scanner

Artec Eva Laser 3D Scanner is an ideal choice for creating fast, textured and accurate 3D models of medium-sized objects such as human breasts, wheels or motorcycle exhaust systems. The device scans quickly, capturing precise measurements in high resolution.

Lightweight, fast and versatile, Eva is our most popular scanner and the market leader in handheld 3D scanners. Based on safe-to-use structured light scanning technology, it is an excellent all-in-one solution for capturing almost any type of object, including objects with black and shiny surfaces.

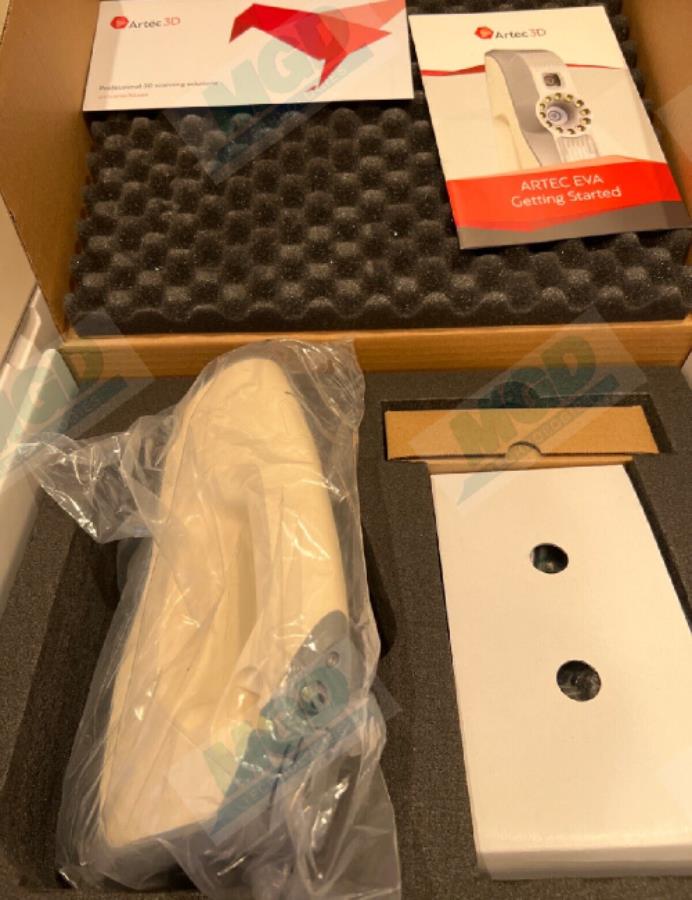

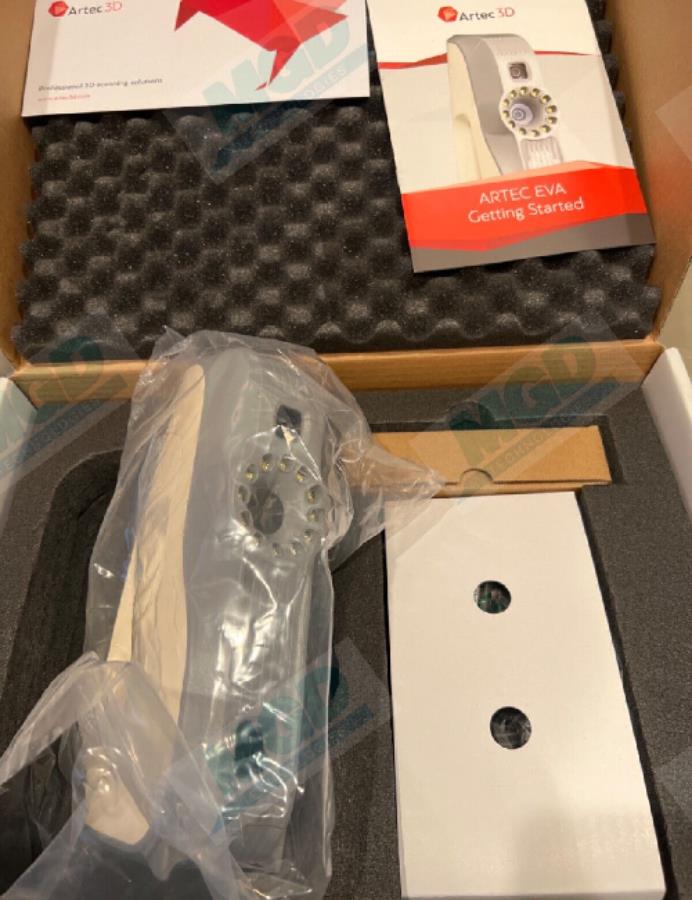

Full color 3D scanner, includes Artec Studio Pro 14 Lifetime License, barely used by one owner. Scan ready condition is very good. This Artec Eva sale includes the life of the Artec Studio Pro, Power supply, Battery, Battery belt pouch, Charger, Original Artec USB Cable, Original Artec Box

The  Scanner is like a video camera that captures in 3D! The Artec Eva captures up to 16 frames per second and is similar to a video camera in that it captures in 3D. Frames are automatically aligned in real-time, making scanning fast and easy.

Perfect for the creation of special effects, medical and bio-mechanical research. Eva’s textured models can also be used in industries such as animation, forensics and medicine. Highly portable, this handheld scanner can be used in the lab, at your location, or outdoors.

The extraordinary measurement speed of Artec video-based scanners of up to 500,000 dots per second makes them many times faster than laser scanners and can be used to scan both moving and stationary objects, opening up new possibilities for customers in terms of motion capture requirements as well as in more traditional industries.

SPECIFICATIONS

3D Resolution: Up to 0.5 mm
3D point accuracy: Up to 0.1 mm
3D accuracy at distance: Up to 0.03% at 100 cm
Color: 24 bpp
Texture resolution: 1.3 mp
Scanning technology: Structured light
Structured light source: Flash bulb (no laser)
Working distance: 0.4 – 1 m
Linear field of view: Closest distance 214 x 148 mm
Linear field of view: Farthest range 536 x 371 mm
Angular field of view: 30 x 21°
Video frame rate: Up to 16 fps
Exposure time: 0.0002 seconds
Data acquisition speed: Up to 2 million points/second.
Multi-core processing: Yes

OUTPUT FORMAT

3D Formats: OBJ, PLY, WRL, STL, AOP, ASCII, Disney PTEX, E57, XYZRGB
Measurement format: CSV, DXF, XML

GENERAL SPECIFICATIONS

Weight: 0.85 kg (1.9 lb)
Dimensions: 262 x 158 x 63 mm
Power consumption: 12V, 48W
Interface: USB 2.0, compatible with USB 3.0
Processing capacity: 40 million triangles / 1 GB RAM

REQUIREMENTS

Processor: Intel I5 or I7
Memory: 12 GB
Video card: NVIDIA or AMD
Recommended: NVIDIA GeForce 400 Series or higher, minimum 1 GB memory
OS: Windows 7, 8, 10 – x64
Free disk space: 300 MB for installation
